DAM API Documentation

1WSCGomez
Moderator
Moderator

2 weeks ago - edited a week ago

Table of Content

  1. Overview

  2. If you are new to 1WorldSync's DAM API

  3. What's New?

  4. Using the 1WorldSync DAM API

    1. DAM API Versioning

    2. Overview

  5. Asset API

    1. Add Digital Asset

    2. Get Metadata for Digital Asset

    3. Delete Digital Asset

    4. Metadata Extraction Details

  6. Validation API

    1. Get Validation for Digital Asset

    2. Digital Asset Validation Profiles

  7. Content API

    1. Get Content of Digital Asset

    2. Get and Transform Content

    3. Get Content of External Asset

    4. Get Thumbnail of External Asset

  8. Utility API

    1. Get Service Status

    2. Get Service Version

  9. Authorisation Mechanism

Appendix - Supported File Types

Contact US

1. Overview

1Worldsync offers Digital Asset Management capabilities for data sources to manage and exchange digital content. Digital Assets are any files about a product - such as product images, videos, and PDFs to support Safety Data Sheets and Warranties. These digital assets can be uploaded to 1Worldsync, where a URL is assigned for hosting the asset.

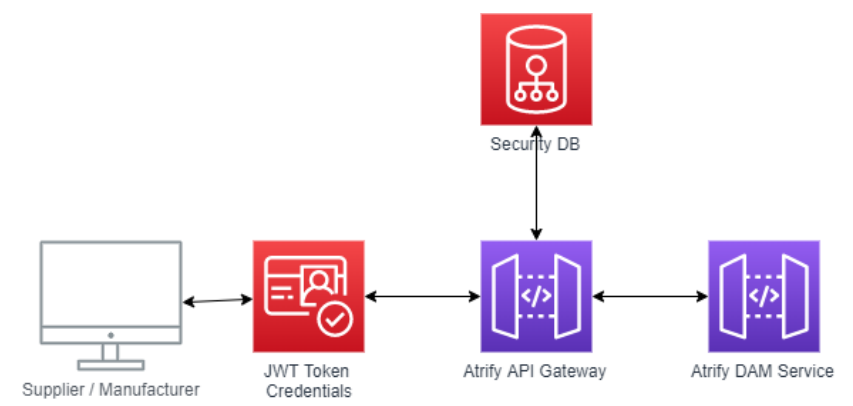

Example: DAM Service Authentication / Process


1Worldsync’s Digital Asset Management (DAM) Application Programming Interface (API) allows you to upload, host, and manage your digital assets. By using this API, you can:

  • Upload images, PDFs, and other related digital content
  • Host your digital assets (have a URL assigned to your digital asset)
  • Associate the digital asset with one of your existing products in Publishing, enabling the content for distribution
  • Get the metadata for a given digital asset
  • Validate digital assets
  • Delete digital assets

This document describes how to use the APIs to manage digital assets within 1Worldsync. It details the various parameters required to access and use the service, such as web service URLs, and request and response formats. The intended audience of this document is any 1Worldsync partner or customer who will use our services to manage digital assets.

2. If you are new to 1WorldSync's DAM API

To get started with using the DAM APIs, please get in touch with our Service Desk team
([email protected]).

After registration you will receive:

  • Your bucket prefix
  • Company GLN
  • Your JWT access token, which grants you access to the service

Example:

Bucket prefix dam-fmcg-pub
Company GLN 25252500000001
JWT access token eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJpc3MiOiIxMjM0NT
Y3ODkwIn0.fc7FE9OBsir9F9e74qbvaCd0F3JnS46l8ifEGSeFoRc

If you would like to test our APIs in a non-production environment, you can use our Pre-Production environment. You will need a separate client id and jwt token. Please contact our Service Desk Team ([email protected]) if you need this additional access established.

3. What's New?

With this release we introduce versioning to our public DAM API. The new API version v2 contains the following changes and improvements:

  • The JSON response objects for storage and retrieval have been restructured and contain additional details about the asset metadata (e.g. color space, resolution, clipping path information).
  • A new validation API (not yet public) will oer the functionality to validate the asset metadata against a defined set of validation rules.
  • Error messages have been improved.
  • The API documentation has been updated and enhanced with more details and examples for all API methods.

See the sections below for further details

4. Using the 1WorldSync DAM API

This chapter provides a listing of all available API requests in a short overview. All HTTP GET methods work without any authentication. For all other HTTP methods, you will need a valid JWT access token, which is sent as an Authorization Bearer header.

4.1 DAM API Versioning

The 1Worldsync DAM API uses a versioning approach where the API version is indicated in the URL. All HTTP requests must specify the API version in the request URL. When backwards-incompatible changes are made to the API, a new version is released.

The URL pattern for all HTTP requests (GET, POST, DELETE) is:

https://dam-api.atrify.com/{version}/{method}/{path_param_1}/{path_param_
2}?{request_param_1}&{request_param_2}&...

Examples:

https://dam-api.atrify.com/v1/version
https://dam-api.atrify.com/v2/version

The latest DAM API version is: v2

Currently supported versions:

Version GA Date EOL Date
V1 2019-12-16 TBD
V2 2020-11-07

There will always be a time frame where multiple versions are active in parallel so that API customers have sucient time to switch their client applications to the new API version. However, every customer will have to choose which version they want, i.e. you cannot mix calls to dierent API versions. The JWT authentication token will be tied to a specific version.

For backwards compatibility we also support requests without specifying a version. These unversioned calls will always point to the oldest available version v1. It is strongly recommended to specify an exact version as 1Worldsync remains the right to discontinue the support for unversioned API calls.

Will everything remain completely unchanged in a version?
1Worldsync does reserve the right to make changes in any API in a short period of time for issues related to security or privacy. These changes don't happen often, but they do happen.

4.2 Overview

Take a look at the automatically generated API documentation provided via Swagger UI
https://dam-api.atrify.com/swagger-ui.html for a first impression.

Action Action Details Description Path
POST Add Digital Asset

This is used to add a digital asset to 1Worldsync digital asset repository. When an asset is uploaded it will be hosted at a 1Worldsync assigned URL. This URL will be returned in the response.
Certain other asset information such as assetId, type, size, height ad width are also returned.

 /{version}/assets/{bucketPrefix}/{companyGln}

QueryParams
GET Get Metadata for Digital Asset This is used to get the metadata for a given asset identified by the asset name /{version}/assets/{bucketPrefix}/{companyGln}/{assetName}
DELETE Delete Digital Asset This is used to delete a
digital asset. This will remove the digital asset at the URL. Caution should be used when deleting a digital asset, as the URL will result in a broken link if the URL is in use (e.g., by one of your trading partners).		 /{version}/assets/{bucketPrefix}/{companyGln}/{assetName}
GET Get Content of Digital Asset This is used to get the digital asset as a file. /{version}/content/{bucketPrefix}/{companyGln}/{assetName}
GET Get Content and Transform File This is used to get the digital asset with a defined scale (height, width) and file type (jpg, jpeg,png,gif).  /{version}/content/transform/{bucketPrefix}/{companyGln}/{assetName}

QueryParams
Get Get Content of External Asset Stream the content of the given asset. Get the external asset as a file /dam/{version}/content

QueryParams
GET Get Thumbnail of External Asset Create a thumbnail for external assets. Get thumbnail as a file /dam/{version}/content/thumbnail

QueryParams
GET Validate Asset This is used to perform a validation of the asset’s metadata against a validation profile. (v2) /{version}/validations/{bucketPrefix}/{companyGln}/{assetName}

QueryParams
GET Get Service Status This can be used to test the connection to the DAM web service. /{version}/status
GET Get Service Version This can be used to test the connection to the DAM web service. /{version}/version

5. Asset API

This chapter describes the methods of the asset API.

5.1 Add Digital Asset

Description: Upload an asset into the digital asset management system.

Note: The maximum file size is 50 megabytes.

POST /{version}/assets/{bucketPrefix}/{companyGln}

Request Headers:

KEY VALUE
Content-Type (required) multipart/form-data
Authorization (required) Bearer [YOUR-JWT]
Accept application/json

Path Parameters:

KEY VALUE : TYPE
bucketPrefix (required) [YOUR-BUCKET] :string
companyGln (required) [YOUR-GLN] :string

Query Parameters:

KEY VALUE : TYPE
fileName (required) :string
mimeType (required) :MIME type
See APPENDIX - Supported File Types


Body Form Data:

KEY VALUE : TYPE
file (required) :file

Response Headers:

KEY VALUE : TYPE
Content-Type application/json

Responses:

CODE Description / Respoonse
  OK
v1:
{
"assetName": "string",
"assetUrl": "string",
"bucketPrefix": "string",
"companyGln": "string",
"contentType": "string",
"fileName": "string",
"fileSize": "integer",
"height": "integer",
"width": "integer"
}
v2:
{
"object": "asset",
"ok": true,
"timestamp": "date-time",
"data": {
"bucketPrefix": "string",
"companyGln": "string",
"assetName": "string",
"fileName": "string",
"assetUrl": "string",
"metadata": {
"size": "integer",
"contentType": "string",
"width": "integer",
"height": "integer",
"colorSpace": "string",
"colorDepth": "integer",
"compressionType": "string",
"horizontalResolution":
"integer",
"verticalResolution":
"integer",
"metadataDateTime":
"date-time",
"updated": "boolean",
"pathData": [
{
"name": "string",
"numPoints": "integer",
"closed": "boolean"
}
]
}
}
}
204 No Content
400 Bad Request
401 Unauthorized
403 Forbidden
404 Not Found
500 Internal Server Error

Example Request (v1):

POST
/v1/assets/dam-fmcg-pub/9300001000018?fileName=devil_128.png&mimeType=image%2Fpng
HTTP/1.1
Host: dam-api.atrify.com
Accept: application/json
Content-Length: 16336
Content-Type: multipart/form-data;
boundary=------------------------d0fb0f9d6844e751

Example Response (v1):

HTTP/1.1 200
Content-Type: application/json

{"bucketPrefix":"dam-fmcg-pub","companyGln":"9300001000018","assetName":"ae284c29-f6da-491d-acab-b8c0145a4e3e-devil_128.png","fileName":"devil_128.png","assetUrl":"https://dam-api.atrify.com/content/dam-fmcg-pub/9300001000018/ae284c29-f6da-491d-acab-b8c0145a4e3e-d...","fileSize":16146,"contentType":"image/png","height":128,"width":128}

Example Request (v2):

POST
/v2/assets/dam-fmcg-pub/9300001000018?fileName=angel_128.png&mimeType=image%2Fpng
HTTP/1.1
Host: dam-api.atrify.com
Accept: application/json
Content-Length: 21800
Content-Type: multipart/form-data;
boundary=------------------------d0fb0f9d6844e751

Example Response (v2):

HTTP/1.1 200
Content-Type: application/json

{"object":"asset","ok":true,"timestamp":"2020-08-24T13:33:32.962334Z","da ta":{"bucketPrefix":"dam-fmcg-pub","companyGln":"9300001000018","assetNam e":"a5df3da0-a5cc-430e-aaca-fe2afff3de85-angel_128.png","fileName":"angel _128.png","assetUrl":"https://dam-api.atrify.com/content/dam-fmcg-pub/9300001000018/a5df3da0-a5cc-430e-aaca-fe2afff3de85-a...","metadata":{"size":21610,"contentType":"image/png","width":128,"height":128,"colorSpace":"RGB","colorDepth":32,"compressionType":"deflate","horizontalResolution":96,"verticalResolution":96}}}

5.2 Get Metadata for Digital Asset

Description: Get the metadata for a given asset identified by the asset name

GET /{version}/assets/{bucketPrefix}/{companyGln}/{assetName}

Request Headers:

KEY VALUE
Accept application/json
If-Modified-Since (optional) date + time in GMT

Path Parameters:

KEY VALUE : TYPE
bucketPrefix (required) [YOUR-BUCKET] :string
companyGln (required) [YOUR-GLN] :string
assetName (required) [ASSET-NAME] :string

Response Headers:

KEY VALUE
Content-Type application/json

Responses:

CODE Description / Response
200 OK
v1:
{
"assetName": "string",
"assetUrl": "string",
"bucketPrefix": "string",
"companyGln": "string",
"contentType": "string",
"fileName": "string",
"fileSize": "integer",
"height": "integer",
"width": "integer"
}
v2:
{
"object": "asset",
"ok": true,
"timestamp": "date-time",
"data": {
"bucketPrefix": "string",
"companyGln": "string",
"assetName": "string",
"fileName": "string",
"assetUrl": "string",
"metadata": {
"size": "integer",
"contentType": "string",
"width": "integer",
"height": "integer",
"colorSpace": "string",
"colorDepth": "integer",
"compressionType": "string",
"horizontalResolution":
"int",
"verticalResolution":
"integer",
"metadataDateTime":
"date-time",
"updated": "boolean",
"pathData": [
{
"name": "string",
"numPoints": "integer",
"closed": "boolean"
}
]
}
}
}
400 Bad Request
401 Unauthorized
403 Forbidden
404 Not Found
500 Internal Server Error

Example Request (v1):

GET
/v1/assets/dam-fmcg-pub/9300001000018/ae284c29-f6da-491d-acab-b8c0145a4e3
e-devil_128.png HTTP/1.1
Host: dam-api.atrify.com
Accept: application/json

Example Response (v1):

HTTP/1.1 200
Content-Type: application/json

{"bucketPrefix":"dam-fmcg-pub","companyGln":"9300001000018","assetName":"ae284c29-f6da-491d-acab-b8c0145a4e3e-devil_128.png","fileName":"devil_128.png","assetUrl":"https://dam-api.atrify.com/content/dam-fmcg-pub/9300001000018/ae284c29-f6da-491d-acab-b8c0145a4e3e-d...","fileSize":16146,"contentType":"image/png","height":128,"width":128}

Example Request (v2):

GET
/v2/assets/dam-fmcg-pub/9300001000018/a5df3da0-a5cc-430e-aaca-fe2afff3de85-angel_128.png HTTP/1.1
Host: dam-api.atrify.com
Accept: application/json

Example Response (v2):

HTTP/1.1 200
Content-Type: application/json

{"object":"asset","ok":true,"timestamp":"2020-08-24T13:33:32.962334Z","data":{"bucketPrefix":"dam-fmcg-pub","companyGln":"9300001000018","assetName":"a5df3da0-a5cc-430e-aaca-fe2afff3de85-angel_128.png","fileName":"angel_128.png","assetUrl":"https://dam-api.atrify.com/content/dam-fmcg-pub/9300001000018/a5df3da0-a5cc-430e-aaca-fe2afff3de85-a...","metadata":{"size":21610,"contentType":"image/png","width":128,"height":128,"colorSpace":"RGB","colorDepth":32,"compressionType":"deflate","horizontalResolution":96,"verticalResolution":96}}}

5.3 Delete Digital Asset

Description: This will remove the digital asset at the URL. Caution should be used when
deleting a digital asset, as the URL will result in a broken link if the URL is in use (e.g., by one of
your trading partners).

DELETE /{version}/assets/{bucketPrefix}/{companyGln}/{assetName}

Request Headers:

KEY VALUE
Accept */*; application/json
Authorization (required) Bearer [YOUR-JWT]

Path Parameters:

KEY VALUE : TYPE
bucketPrefix (required) [YOUR-BUCKET] :string
companyGln (required) [YOUR-GLN] :string
assetName (required) [ASSET-NAME] :string

Response Headers:

KEY VALUE
Content-Type application/json

Responses:

CODE Description / Response
200 OK

When the asset has been deleted.
401 Unauthorized
403 Forbidden
404 Not Found
When the asset could not be found and
therefore was not deleted.
500 Internal Server Error

Example Request:

DELETE
/v2/assets/dam-fmcg-pub/9300001000018/ae284c29-f6da-491d-acab-b8c0145a4e3
e-devil_128.png HTTP/1.1
Host: dam-api.atrify.com
Accept: */*

Example Response:

HTTP/1.1 200
Content-Length: 0

5.4 Metadata extraction details

Color space extraction mapping

ColorSpace Return Value ColorSpace Return Value
ColorSpace.TYPE_XYZ XYZ ColorSpace.TYPE_4CLR 4CLR
ColorSpace.TYPE_Lab Lab ColorSpace.TYPE_5CLR 5CLR
ColorSpace.TYPE_Luv Luv ColorSpace.TYPE_6CLR 6CLR
ColorSpace.TYPE_YCbCr YCbCr ColorSpace.TYPE_7CLR 7CLR
ColorSpace.TYPE_Yxy Yxy ColorSpace.TYPE_8CLR 8CLR
ColorSpace.TYPE_RGB RGB ColorSpace.TYPE_9CLR 9CLR
ColorSpace.TYPE_GRAY GRAY ColorSpace.TYPE_ACLR ACLR
ColorSpace.TYPE_HSV HSV ColorSpace.TYPE_BCLR BCLR
ColorSpace.TYPE_HLS HLS ColorSpace.TYPE_CCLR CCLR
ColorSpace.TYPE_CMYK CMYK ColorSpace.TYPE_DCLR DCLR
ColorSpace.TYPE_CMY CMY ColorSpace.TYPE_ECLR ECLR
ColorSpace.TYPE_2CLR 2CLR ColorSpace.TYPE_FCLR FCLR
ColorSpace.TYPE_3CLR 3CLR

6. Validation API

This chapter describes the methods of the validation API.

6.1 Get Validation for Digital Asset

Description: Performs a validation of the asset metadata and returns the validation results for a
given asset identified by the asset name.
The asset metadata is validated against the specified validation profile. The current supported
profiles are ‘FMCG’ and ‘GS1AT’.

Note: This method is only available in version v2 or later.
Note: This method is currently not available publicly.



GET /{version}/validations

Request Headers:

KEY VALUE
Accept application/json
If-Modified-Since (optional) date + time in GMT

Path Parameters:
None

Query Parameters:

KEY VALUE : TYPE
url (required) :url
profile (required) :string
Supported values: FMCG, GS1AT
language :string
Supported values: de, en

Response Headers:

KEY VALUE : TYPE
Content-Type application/json

Responses:

CODE Description / Response
200 OK
v2:
{
"object": "validation",
"ok": true,
"timestamp": "date-time",
"data": {
"profile": "string",
"result":
<VALID|INVALID|FAILED|SKIPPED>,
"messages": [
{
"id": "string",
"severity":
<INFO|WARNING|ERROR|FATAL>,
"field": "string",
"message": "string"
},
...
]
}
}
400 Bad Request
{
"object": "error",
"ok": false,
"timestamp":
"YYYY-MM-DDTHH:mm:ss.SSSZ",
"errorCode": 400,
"message": "string",
"additionalMessage": "string"
}
401 Unauthorized
403 Forbidden
404 Not Found
422 Unprocessable Entity
{
"object": "error",
"ok": false,
"timestamp": "date-time",
"errorCode": 422,
"message": "string",
"additionalMessage": "string"
}
500 Internal Server Error

Example Request:

GET
/v2/validations?profile=GS1AT&url=https://dam-api.atrify.com/assets/dam-pub-fmcg/9300001000018/5add067e-a619-45c5-aac7-98252a059fba-07702018451548A004xxx0102.jpg&language=de HTTP/1.1
Host: dam-api.atrify.com
Accept: application/json

Example Response:

Asset is Valid:

HTTP/1.1 200
Content-Type: application/json

{"object":"validation","ok":true,"timestamp":"2020-08-24T14:05:55.392275Z","data":{"profile":"GS1AT","result":"VALID","messages":[]}}

Asset is invalid:

HTTP/1.1 200
Content-Type: application/json

{"object":"validation","ok":true,"timestamp":"2020-08-24T14:20:53.748105Z","data":"profile":"GS1AT","result":"INVALID","messages":[{"id":"BD6","severity":"ERROR","field":"verticalResolution","message":"Wert ist 0 aber muss größer oder gleich 300sein"},{"id":"BP4","severity":"ERROR","field":"clippingPathAvailable","message":"Wert ist false aber muss wahrsein"},{"id":"BD7","severity":"ERROR","field":"dimension","message":"Wert ist (width=151, height=600) aber Breite muss größer oder gleich 2000 sein oder Höhe muss größer oder gleich 2000
sein"},{"id":"BD5","severity":"ERROR","field":"horizontalResolution","message":"Wert ist 0 aber muss größer oder gleich 300 sein"},{"id":"BD1","severity":"ERROR","field":"mimeType","message":"Wert ist image/png aber muss einer sein aus [image/tiff, image/jpeg]"}]}}

Validation failed because of invalid request parameters:

HTTP/1.1 400
Content-Type: application/json
{"object":"error","ok":false,"timestamp":"2020-08-24T15:34:07.245802Z","errorCode":400,"message":"request could not be processed due to unsupported parameters","additionalMessage":"Unsupported validation profile"}

6.2 Digital Asset Validation Profiles

Currently there are two digital asset validation profiles FMCGProfile and GS1ATProfile.
Each asset metadata with appropriate target market is validated against the profile.
DE Profile (related to DQG Rules):

  • id = "FMCG.BD4" - The file format is ${validatedValue}, but it must be one of
    {"image/ti", "image/tif", "image/jpeg", "image/jpg"}.
  • id = "FMCG.BD6" - The color space is ${validatedValue}, but it must be {"RGB",
    "YCbCr"}.
  • id = "FMCG.BD7" - ${validatedValue.width} px in width and
    ${validatedValue.height} px in height are indicated.
    However, the image size must be at least {2401} px in width ${conjunctive ==
    true ? 'and' : 'or'} {2401} px in height.
  • id = "FMCG.BD8-H" - The horizontal resolution is ${validatedValue} {unit} is, but
    it must be at least {300} {DPI}.
  • id = "FMCG.BD8-V" - The vertical resolution is ${validatedValue} {unit} is, but it
    must be at least {300} {DPI}.
  • id = "FMCG.BD8" - The file size is ${formatter.format('%1$.2f', validatedValue)}
    {unit} is, but it must not be larger than {25} {MB}.
  • id = "FMCG.BD9" - The color depth is ${validatedValue} {unit}, but it must be at
    least {8} {bit}.


If there are available clipping paths then ClippingPathChecks :

  • id = "FMCG.BD1" - A clipping path must be defined.
  • id = "FMCG.BD3" - The clipping path must be closed.

GS1ATProfile :

  • id = "BD1" - The file format is ${validatedValue}, but it must be one of {image/ti
    or image/jpeg}.
  • id = "BD3" - The color depth is ${validatedValue} {unit}, but it must be at least
    {24} {bit}.
  • id = "BD4" - The color space is ${validatedValue}, but it must be {"RGB",
    "YCbCr"}.
  • id = "BD5" - The horizontal resolution is ${validatedValue} {unit} is, but it must be
    at least {300} {DPI}.
  • id = "BD6" - The vertical resolution is ${validatedValue} {unit} is, but it must be at
    least {300} {DPI}.
  • id = "BD7" - ${validatedValue.width} px in width and ${validatedValue.height} px
    in height are indicated.
    However, the image size must be at least {2401} px in width ${conjunctive ==
    true ? 'and' : 'or'} {2401} px in height.
  • id = "BD8" - The file size is ${formatter.format('%1$.2f', validatedValue)} {unit} is,
    but it must not be larger than {25} {MB}.

If there are available clipping paths then ClippingPathChecks :

● id = "BP4" - A clipping path must be defined.
● id = "BP2" - The clipping path must be closed.
● id = "BP3" - The clipping path consists of ${validatedValue} points. However, it
must only consist of a maximum of {600} points.

7. Content API

This chapter describes the methods of the content API.

7.1 Get Content of Digital Asset

Description: Stream the content of the given asset. Get the digital asset as a file.

GET /{version}/content/{bucketPrefix}/{companyGln}/{assetName}

Request Headers:

KEY VALUE
Accept (required) image/* :MIME type
If-Modified-Since (optional) :date

Path Parameters:

KEY VALUE : TYPE
bucketPrefix (required) [YOUR-BUCKET] :string
companyGln (required) [YOUR-GLN] :string
assetName (required) [ASSET-NAME] :string

Response Headers:

KEY VALUE
Content-Type image/*
Last-Modified :date
Content-Disposition inline; filename="[filename]”
Cache-Control max-age=2592000, public

Responses:

CODE Description / Response
200 OK
304 Not Modified
404 Not Found
500 Internal Server Error

Example Request:

GET
/v2/content/dam-fmcg-pub/9300001000018/2edb8a7c-de6e-48a4-90f6-57d8f52f63ac-queen_128.png HTTP/1.1
Host: dam-api.atrify.com
Accept: image/*

Example Response:

HTTP/1.1 200
Last-Modified: Tue, 23 Jun 2020 08:05:25 GMT
Content-Disposition: inline; filename="queen_128.png"
Cache-Control: max-age=2592000, public
Content-Type: image/png

7.2 Get and Transform Content

Description: This is used to get the digital asset with a defined scale (height, width) and file type
(jpg, jpeg, png, gif).

The asset name as provided in the metadata after the upload and the bucket prefix and company GLN have to be passed to identify the resource. The transformed content of the found image is streamed to the client, the If-Modified-Since header is respected and the asset is stored with max-age=one month and as a public resource, which allows proxies to store it. The given asset must be an image. Valid values for type are 'jpg’, 'jpeg’, ‘png’ or ‘gif’.

GET /{version}/content/transform/{bucketPrefix}/{companyGln}/{assetName}

Request Headers:

KEY VALUE
Accept (required) image/* :MIME type
If-Modified-Since (optional) :date

Path Parameters:

KEY VALUE : TYPE
bucketPrefix (required) [YOUR-BUCKET] :string
companyGln (required) [YOUR-GLN] :string
assetName (required) [ASSET-NAME] :string

Query Parameters:

KEY VALUE : TYPE
height (required) :integer
width (required) :integer
type (required) :string
Supported values : jpg, jpeg, png, gif

Response Headers:

KEY VALUE
Content-Type image/*
Last-Modified :date
Content-Disposition inline; filename="[filename]”
Cache-Control max-age=2592000, public

Responses:

CODE Description / Response
200 OK
304 Not Modified
404 Not Found
500 Internal Server Error

Example Request:

GET
/v2/content/transform/dam-fmg-pub/9300001000018/2edb8a7c-de6e-48a4-90f6-57d8f52f63ac-queen_128.png?width=50&height=50&type=png HTTP/1.1
Host: dam-api.atrify.com
Accept: image/*

Example Response:

HTTP/1.1 200
Last-Modified: Tue, 23 Jun 2020 08:05:25 GMT
Content-Disposition: inline; filename="queen_128.png"
Cache-Control: max-age=2592000, public
Content-Type: image/png

7.3 Get Content of External Asset

Description: Stream the content of the given asset. Get the external asset as a file
This will take an url of an external asset and save it into the digital asset management system.
External assets stay in our cache for a limited time so this same logic is applied to asset content
saved in the digital asset management.
Optional parameters:

  • isBase64 - when set to true will decode url in Base64 (default false)
  • Cache-Control - if it contains no-cache asset will not be cached



GET /dam/{version}/content

Request Headers:

KEY VALUE
Accept (required) image/* :MIME type

Query Parameters:

KEY VALUE : TYPE
url (required) :string
isBase64 :boolean
Cache-Control :string

Response Headers:

KEY VALUE
Content-Type image/*
Content-Disposition inline
Cache-Control max-age=0, public

Responses:

CODE Description / Response
200 OK
304 Not Modified
404 Not Found
500 Internal Server Error

Example Request:

GET /dam/v1/content?url=urlPathToImage
Host: dam-api.atrify.com
Accept: image/*

Example Response:

Content-Disposition: inline
Cache-Control: max-age=0, public
Content-Type: image/png

7.4 Get Thumbnail of External Asset

Description: Create thumbnail for external asset. Get thumbnail as a file This will take an url of an external asset, download it, scale it to an desired scale and save it into the digital asset management system as a .jpg. External assets stay in our cache for a limited time so this same logic is applied to asset content saved in the digital asset management. Thumbnails can only be created for assets that are the type of:

  • jpeg
  • png
  • ti
  • gif
  • pdf

Optional parameters:

  • isBase64 - when set to true will decode url in Base64 (default false)
  • Cache-Control - if it contains no-cache asset will not be cached
  • xres - width of the thumbnail (default 100)
  • yres - height of the thumbnail (default 100)
GET /dam/{version}/content/thumbnail

Request Headers:

KEY VALUE
Accept (required) image/jpeg

Query Parameters:

KEY VALUE : TYPE
url (required) :string
isBase64 :boolean
Cache-Control :string
xres :integer
yres :integer

Responses Headers:

KEY VALUE
Content-Type image/jpeg
Content-Disposition inline
Cache-Control max-age=0, public

Response:

CODE Description / Response
200 OK
304 Not Modified
404 Not Found
500 Internal Server Error

Example request:

GET
/dam/v1/content/thumbnail?xres=300&yres=300&url=urlPathToImage
Host: dam-api.atrify.com
Accept: image/jpeg

Example response:

Content-Disposition: inline
Cache-Control: max-age=0, public
Content-Type: image/jpeg

8. Utility API

This chapter describes the methods of the utility API.

8.1 Get Service Status

Description: Get the status to test the connection to the DAM web service

GET /{version}/status

Request Headers:
No Headers required

Parameters:
No parameters Required

Query Parameters:

Responses Headers:

KEY VALUE
Content-Type text/plain;charset=UTF-8

Response:

CODE Description / Response
200 OK

"ok"
500 Service not available

"error"

Example request:

GET /v2/status HTTP/1.1
Host: dam-api.atrify.com
Accept: */*

Example response:

HTTP/1.1 200
Content-Type: text/plain;charset=UTF-8

ok

8.2 Get Service Version

Description: Get the version of the DAM web service

GET /{version}/version

Request Headers:

KEY VALUE
Accept application/json

Parameters:
No parameters Required

Responses Headers:

KEY VALUE
Content-Type application/json

Response:

CODE Description / Response
200 OK

"ok"
500 Service not available

"error"

Example request:

GET /v2/version HTTP/1.1
Host: dam-api.atrify.com
Accept: application/json

Example response:

HTTP/1.1 200
Content-Type: application/json

{"artifact":"dam-rest-service","bucket":"atrify-dam-prod","buildTime":"2020-04-20T09:47:33Z","commitTime":"2020-04-20T08:58:06Z","name":"DAM REST Service","commitId":"631890e","version":"3.0.3.31","branch":"master","bui
ldNumber":"41"}

9. Authorization Mechanism

The DAM POST and DELETE requests are secured via JSON Web Token (JWT). If you want to access the API, you need to set an HTTP Authorization Header with value ‘Bearer [YOUR-JWT]’.

If you just have the secret and key use your JWT secret and key to generate an access token.

EXAMPLE: (www.jwt.io Debugger)

Header:
{
"alg": "HS256",
"typ": "JWT"
}
Payload:
{
"iss": "YOUR-KEY"
}
Verify Signature:
HMACSHA256(
base64UrlEncode(header) + "." +
base64UrlEncode(payload),
YOUR-SECRET
)

This configuration will generate an access token like this:

“eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJpc3MiOiJZT1VSLUtFWSJ9.qoPYMLGhudASYWr7RyT6MtYdffXAM6d9iPBVS65JtOI”

Please change “YOUR-KEY” and “YOUR-SECRET” with your personal information. If you have any questions please contact support.

EXAMPLE REQUEST:

Inside the HTTP Request Header

Authorization: Bearer
eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJpc3MiOiJZT1VSLUtFWSJ9.qoPYMLGhudASYWr7RyT6MtYdffXAM6d9iPBVS65JtOI

Here's a sample curl invocation how to do a DAM file upload:

curl -ksSL \
-H "Accept: application/json" \
-H "Authorization: Bearer <your-jwt-token>" \
-X POST \
-F "[email protected]" \
"https://dam-api-test.atrify.com/assets/dam-fmcg-pub-test/<your-gln>?file
Name=your-file.png&mimeType=image%2Fpng"

Appendix - Supported File Types

This section lists the supported file types along with the MIME type that should be used in API
calls.

Name MIME Type File Extension
JPEG images image/jpeg .jpeg, .jpg
Graphics Interchange Format image/gif .gif
Bitmap Image File image/bmp .bmp
Icon Image image/vnd.microsoft.icon  .ico
Portable Network Graphics (PNG) image/png .png
Tagged Image File Format image/ti .tiff
Waveform Audio File Format (WAV) audio/x-wav .wav
Microsoft Windows Media Audio audio/x-ms-wma .wma
MIDI - Musical Instrument Digital Interface audio/midi .midi
MPEG Audio audio/mpeg .mpga
MPEG-4 audio audio/mp4 .m4a
Real Audio Sound audio/x-pn-realaudio .ram
RealMedia application/vnd.rn-realmedia .rm
Flash Video video/x-flv .flv
3GP/3GP2 video/3gpp; video/3gpp2 3gp, 3g2
Audio Video Interleave (AVI) video/x-msvideo .avi
Microsoft Windows Media Video video/x-ms-wmv .wmv
MPEG Video video/mpeg .mpeg
MPEG4 Video video/mp4 .mp4, .mov
Adobe Portable Document Format application/pdf .pdf
Digital multimedia file video/webm .webm
Zip Archive application/zip .zip

Contact Us

If you need assistance, please contact us at [email protected].

Labels:
0 Kudos
Comment
Version history
Revision #:
17 of 17
Last update:
a week ago
Updated by:
Moderator

View Article History
Contributors
